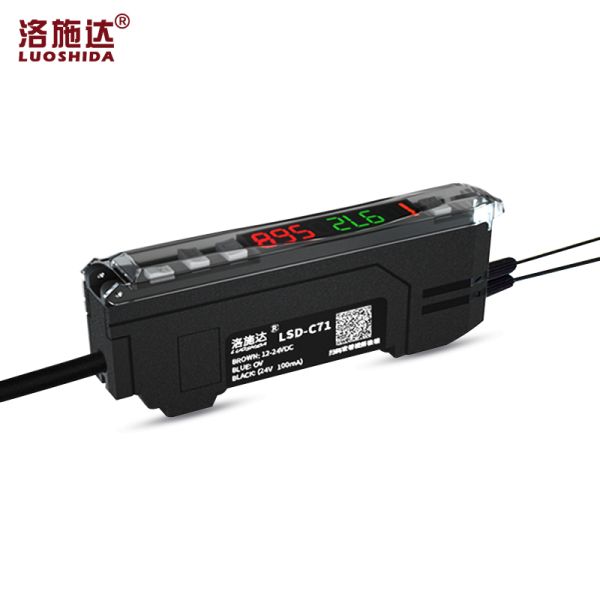

RGB Three-Color Lighting Source Color-Sensitive NPN/PNP NO/NC Fiber Optic Amplifier Fiber Optic Detector Automated Mechanical

Name: RGB ThreeColor Lighting Source ColorSensitive NPNPNP NONC Fiber Optic Amplifier Fiber Optic Detector Automated Mechanical
Brand: Luoshida
Price: 1 USD

China RGB Three-Color Lighting Source Color-Sensitive NPN/PNP NO/NC Fiber Optic Amplifier Fiber Optic Detector Automated Mechanical factory

Brand Name : Luoshida

Model Number : LSD-C71

Certification : CE RoHS

Place of Origin : China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 3000PCS per month

Delivery Time : 5-8 work days

Packaging Details : Normal standard: individual package with labels and outside is normal brown box.

product name : Fiber Optic Amplifier

Response Time : MARK mode 50 microseconds,C mode 130 microseconds

Condition : 100%New 100%Original

Working temperature : -10+55°C no freezing

Output selection : LIGHT-ON/DARK-ON(Switch Selection)

Ambient brightness : Incandescent lamp: Max. 20,000lux, daylight:Max. 30,000lux

Contact Now

Detection distance	Flush 1mm/Non-flush 2mm
Response time	MARK mode 50 microseconds,C mode 130 microseconds
Working temperature	-10+55°C no freezing
Output selection	LIGHT-ON/DARK-ON(Switch Selection)
Display Indicator	Operation indicator: red LED, dual digital monitor: double 7-digit display, the threshold(4-digit green LED indicator) and the current value (4-digit red LED indicator) are lit together. Current value range :0 to 9999
Detection Method	Light intensity detection MAKR and color automatic matching C and color + brightness value detection Cl
Delay Function	Open delay timer/Open delay timer/Single timer/Open delay timer, optional. The meter display can be selected in duration:1ms to 9999ms
Control output	NPN/PNP open collector 24V, Max100mA(only main parts) Max 20mA(Residual voltage :1V when expansion parts are connected
Power supply	Between 12 and 24VDC+10%, floating rate (P-P):Maximum 10% grade 2
Ambient brightness	Incandescent lamp: Max. 20,000lux, daylight:Max. 30,000lux

RGB Three-Color Lighting Source Color-Sensitive NPN/PNP NO/NC Fiber Optic Amplifier Fiber Optic Detector Automated Mechanical

Company Profile
RGB Three-Color Lighting Source Color-Sensitive NPN/PNP NO/NC Fiber Optic Amplifier Fiber Optic Detector Automated Mechanical
FAQ

Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
